Rack-mounted commercial battery

Dawnice EnterFlex-2.0 BS09-64~241-R Rack HV Battery

A floor-standing high-voltage LiFePO4 platform from 64.3kWh to 241.15kWh, parallel-expandable to 2.41MWh for indoor plant rooms and EPC integration.

Request quotationRequest datasheet
Dawnice EnterFlex-2.0 BS09-64~241-R Rack HV Battery
64.3-241.15kWhEnergy range
314AhCell
Up to 2.41MWhParallel bank
15 yearsDesign life
Dawnice EnterFlex-2.0 BS09-64~241-R Rack HV Battery

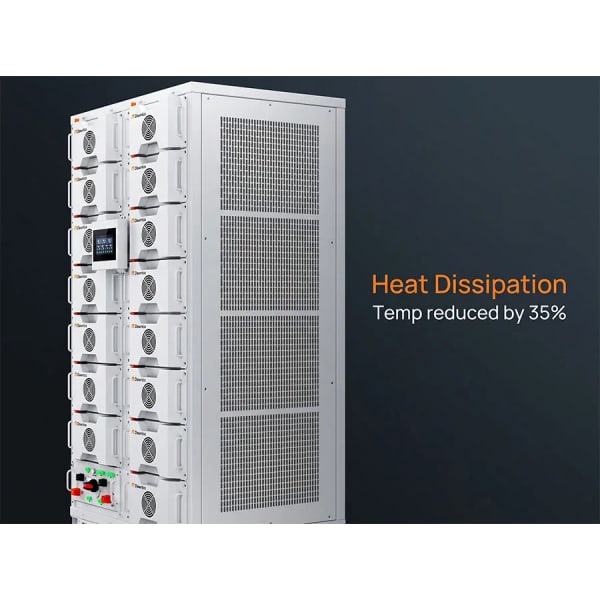

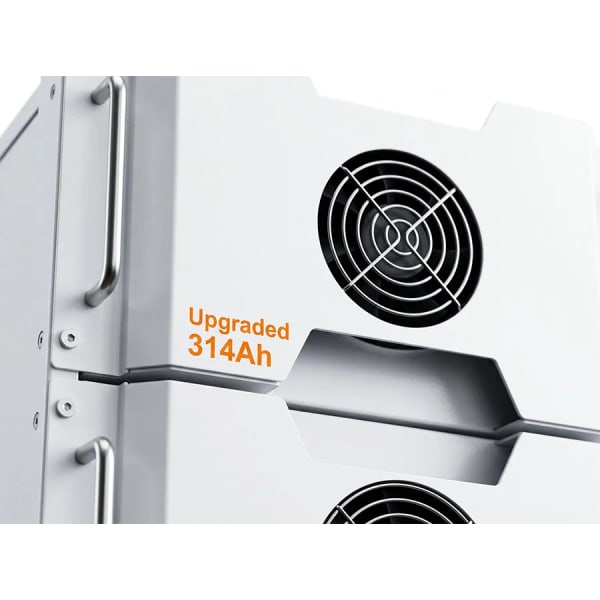

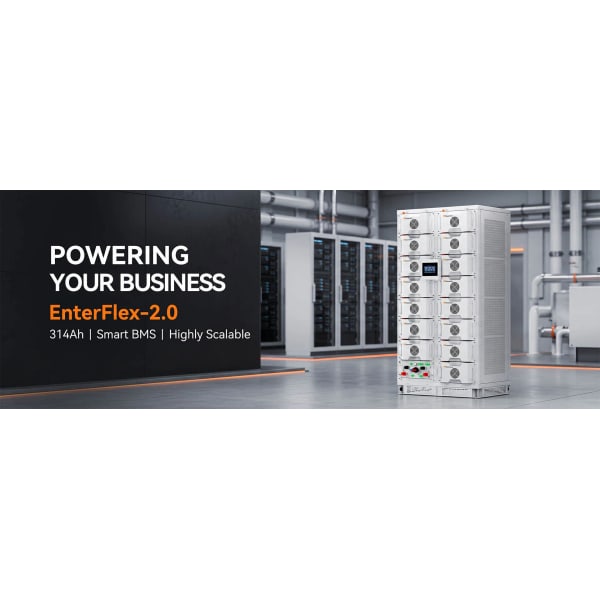

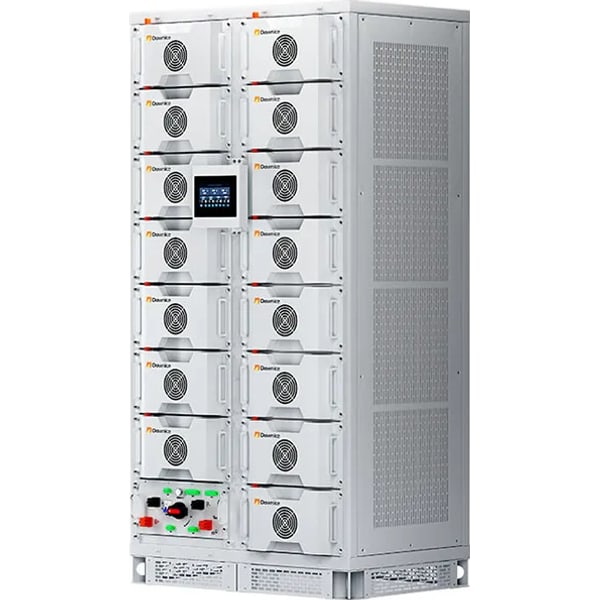

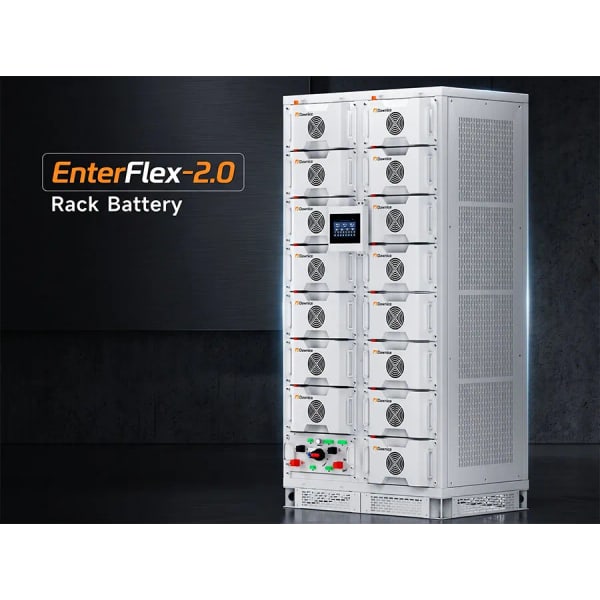

Dawnice EnterFlex-2.0 BS09-64~241-R Rack HV Battery view 2Dawnice EnterFlex-2.0 BS09-64~241-R Rack HV Battery view 3Dawnice EnterFlex-2.0 BS09-64~241-R Rack HV Battery view 4Dawnice EnterFlex-2.0 BS09-64~241-R Rack HV Battery view 5Dawnice EnterFlex-2.0 BS09-64~241-R Rack HV Battery view 6Dawnice EnterFlex-2.0 BS09-64~241-R Rack HV Battery view 7

Technical data

Core specifications

Battery chemistryLiFePO4
Cell configuration3.2V 314Ah, 16S1P per module
Model rangeBS09-64-R/4S to BS09-241-R/15S, 15 capacity steps
Nominal voltage204.8V (4 modules) to 768V (15 modules)
Nominal energy64.3kWh to 241.15kWh
Usable energy57.87kWh to 217.03kWh at 90% DOD
Max charge/discharge current157A
Cycle life>=8,000 cycles (25 C, 0.5C/0.5C, 90% DOD, 70% EOL)
Design life>=15 years at 25 C
Warranty5+5 years
CoolingFan cooling
InstallationFloor-mounted, indoor
Ingress protectionIP20
Operating temperatureCharge 0-55 C, discharge -20-55 C

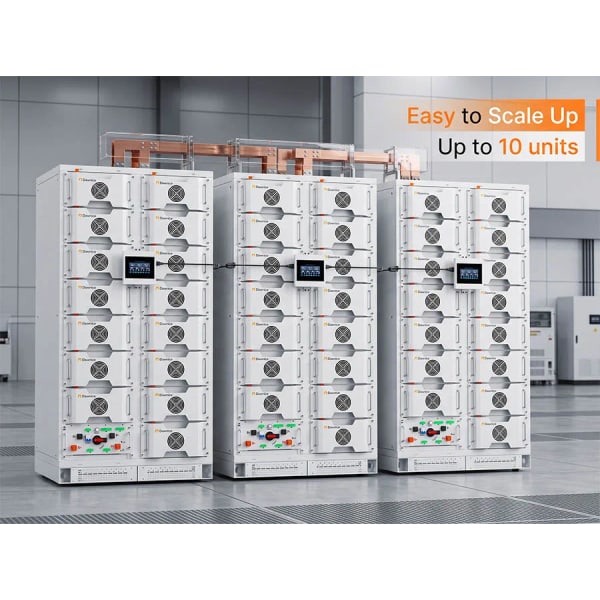

Parallel capabilityUp to 10 units, 64kWh to 2,410kWh
CommunicationCAN / RS485
Dimensions1100 x 792 x 969mm (64.3kWh) to 1100 x 792 x 2226mm (241.15kWh)
Weight980kg (64.3kWh) to 2333kg (241.15kWh)

Applications

Suitable project scenarios

Indoor plant roomsContainer-integrated projectsOffices and retail sitesEPC self-integration

Documentation

Documents supplied with this platform

Datasheet, certificate package, wiring diagram, and warranty card are issued against the confirmed order configuration.

Certification applicability depends on model, order configuration, and destination market. The latest matching certificate package is confirmed before final quotation.

FAQ

Common questions

Does it need a climate-controlled room?

No. It is IP20 and fan-cooled, so a dry, ventilated indoor space is enough; the range is 0-55 C charging and -20-55 C discharging.

How does it compare with the Loong outdoor cabinets?

Same 314Ah cell and 8,000-cycle class, but built for indoor plant rooms and self-integration. The trade is IP20 instead of IP54.

What is the largest bank I can build?

Ten units at 241.15kWh each, for 2,410kWh in a single parallel bank.
