All-in-one commercial ESS

Honey 125kW / 261kWh All-in-One ESS

A 125kW / 261kWh liquid-cooled all-in-one ESS cabinet for commercial energy storage and PV applications.

Request quotationDownload datasheet (PDF)
Honey 125kW / 261kWh All-in-One ESS
125kWPower
261.248kWhEnergy
Liquid cooledCooling
6,000 cycles @ 80% SOH (25 °C / 0.5C); up to 8,000 at cell levelCycles

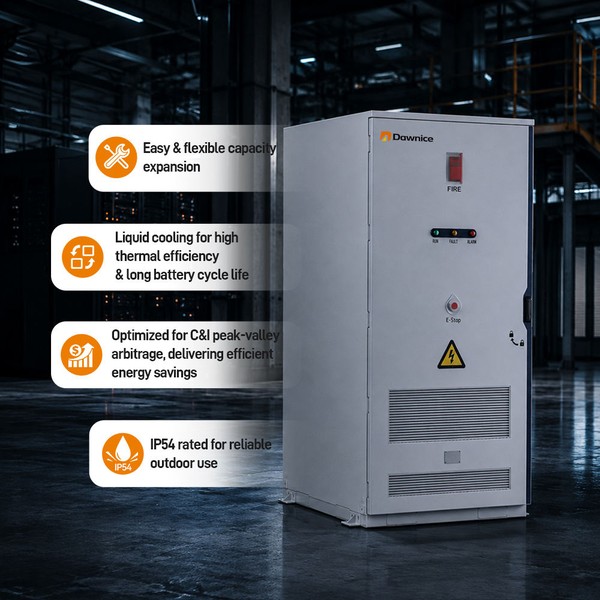

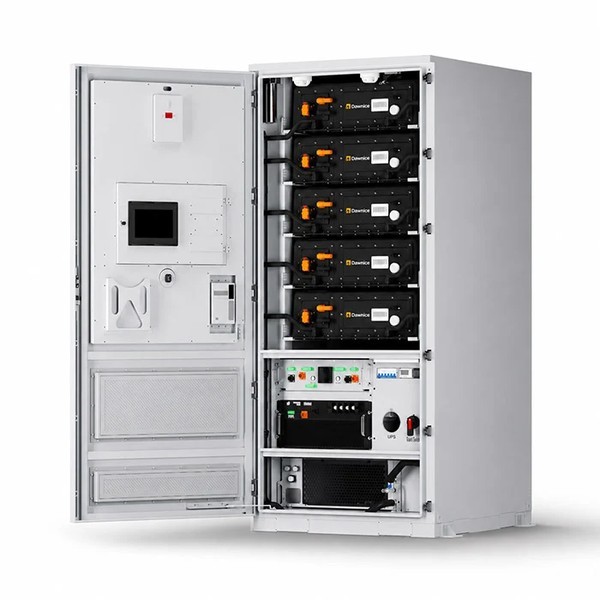

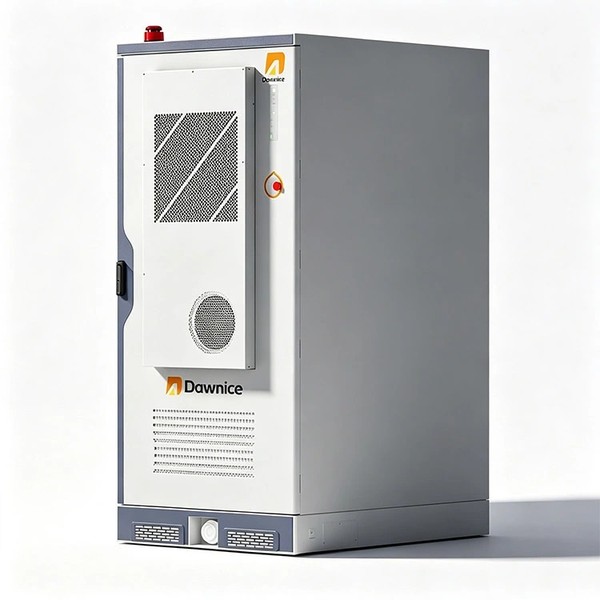

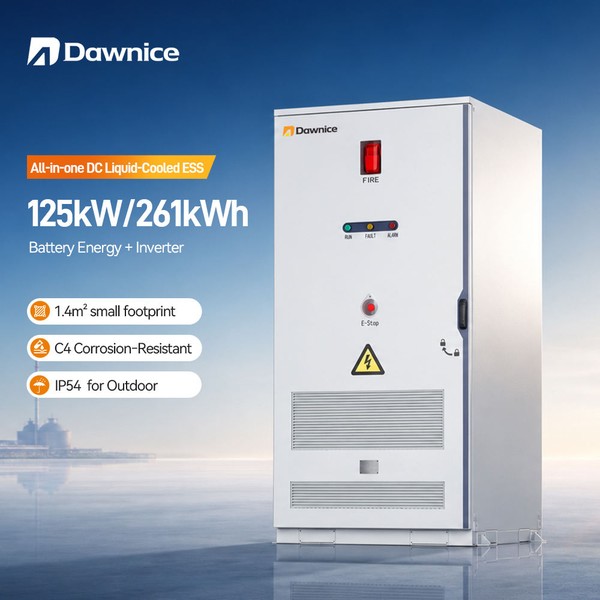

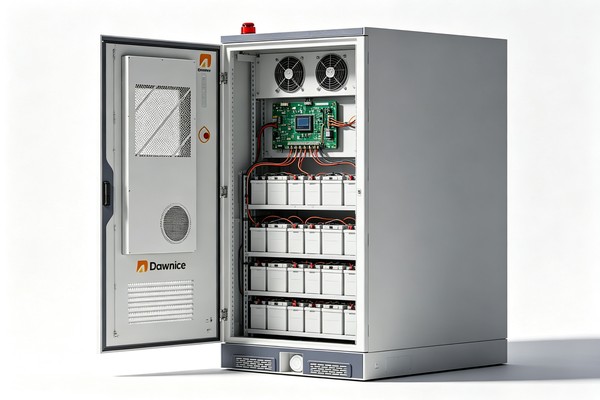

Honey 125kW / 261kWh All-in-One ESS
Honey 125kW / 261kWh All-in-One ESS view 2Honey 125kW / 261kWh All-in-One ESS view 3Honey 125kW / 261kWh All-in-One ESS view 4Honey 125kW / 261kWh All-in-One ESS view 5Honey 125kW / 261kWh All-in-One ESS view 6Honey 125kW / 261kWh All-in-One ESS view 7

Technical data

Core specifications

Rated power125kW
Nominal energy261.248kWh
Cell chemistryLiFePO4
Cell specification3.2V / 314Ah
Charge/discharge rate0.5C
Thermal managementIntelligent liquid cooling
Temperature uniformity<=3C
Cycle life6,000 cycles @ 80% SOH (25 °C / 0.5C); up to 8,000 at cell level
Ingress protectionIP54
Fire protectionAerosol fire suppression
Dimensions1055 x 1300 x 2300mm
Footprint1.4m2

Applications

Suitable project scenarios

Commercial buildingsPV self-consumptionBackup and peak shaving

Documentation

Documents supplied with this platform

The platform datasheet is available as a PDF. The certificate package, wiring diagram, and warranty card are issued against the confirmed order configuration.

Certification applicability depends on model, order configuration, and destination market. The latest matching certificate package is confirmed before final quotation.

FAQ

Common questions

What cooling does it use?

Intelligent liquid cooling, holding cell-to-cell temperature spread within 3°C.

What is the cycle life?

6,000 cycles to 80% state of health at 25°C and 0.5C. The 8,000 figure is cell level only.

Where can it be installed?

Outdoors, IP54, 1055 x 1300 x 2300 mm. Check door and delivery-route clearance before ordering.

Sources

Where these figures come from

Project support

Need a configured battery storage solution?

Send your application, location, load profile, and target capacity. We will recommend a suitable Ruibit / Dawnice system and confirm sizing assumptions with you.

Quotation target: 24 working hours for a complete brief. Datasheet and certificate package supplied per configuration.
